The Marvel of Metal: Unveiling the Secrets of Ring Rolling Forging

Ever wondered how those perfectly round, strong, and seamless metal rings are made? Well, buckle up, buttercup, because we're diving headfirst into the fascinating world of ring rolling forging! It's not just about bending metal; it's a sophisticated process that transforms raw materials into crucial components for everything from jet engines to massive pipelines. So, grab a cuppa and let's explore this incredible feat of engineering.

What in the Heck is Ring Rolling Forging?



Alright, let's cut to the chase. What exactly is this "ring rolling forging" we're banging on about? In a nutshell, it's a hot metal forming process used to create seamless rings. Think of it like this: instead of machining away a big chunk of metal to get a ring (which is wasteful, right?), ring rolling uses pressure and rotation to expand a smaller, thicker piece of metal into a larger, thinner ring. Pretty neat, huh?

Imagine a donut – that’s the basic shape we’re aiming for. Now, picture squeezing that donut from the inside while it spins. The hole gets bigger, and the donut gets thinner. That's the core principle of ring rolling forging. It’s a bit more complex than that, of course, involving heavy machinery and precise controls, but that gives you the gist.

The Nitty-Gritty: How Does Ring Rolling Forging Actually Work?

Okay, let's get down to the brass tacks. The process typically starts with a pre-formed metal piece, often a forged or rolled donut shape, known as a preform or a pierced blank. This blank is heated to a high temperature, making the metal pliable and ready for shaping. Then the magic happens:

1. Heating the Metal: The metal blank is heated to its forging temperature, typically in a furnace. The specific temperature depends on the type of metal being used.

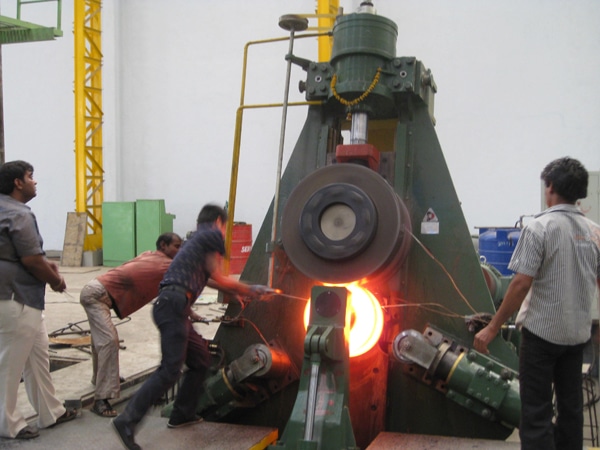

2. Placing the Blank: The heated blank is placed between two rolls: an inner roll (mandrel) and an outer roll (driving roll).
3. Applying Pressure and Rotation: The inner roll applies pressure against the inside diameter of the blank, while the outer roll rotates, causing the blank to rotate as well.
4. Ring Expansion: As the rolls rotate and apply pressure, the metal is progressively squeezed and stretched, causing the diameter of the ring to increase and the wall thickness to decrease.
5. Shaping and Sizing: The process continues until the desired dimensions of the ring are achieved. Sophisticated controls ensure accuracy and consistency.

It's a continuous process, and with modern machinery, it can be quite efficient. The result? A seamless ring with superior structural integrity compared to rings made by other methods.

Why Choose Ring Rolling Forging Over Other Methods?

Now, you might be thinking, "Why go through all this trouble? Why not just cut a ring out of a metal plate?" Well, there are several compelling reasons why ring rolling forging is often the preferred method:

• Superior Strength and Integrity: The forging process aligns the grain structure of the metal, resulting in a stronger and more durable ring. No weak points from welding!
• Material Efficiency: Compared to machining, ring rolling minimizes material waste. You're shaping the metal, not cutting it away.
• Cost-Effectiveness for Large Quantities: While the initial setup can be costly, for larger production runs, ring rolling is often more economical.
• Near-Net Shape Capability: Ring rolling can produce rings that are very close to the final required dimensions, reducing the need for extensive machining.
• Seamless Construction: The absence of a weld seam eliminates a potential point of failure, crucial for high-stress applications.

So, you see, it's not just about making a ring; it's about making a *better* ring.

The Different Types of Ring Rolling Forging Machines

Believe it or not, there's more than one way to skin a cat, and the same goes for ring rolling machines! While the fundamental principle remains the same, different machine configurations cater to specific needs and ring sizes. Here are a couple of the main types:

• Axial Ring Rolling Machines: These machines primarily expand the diameter of the ring while maintaining a relatively constant height. They are commonly used for producing flat or slightly contoured rings.
• Radial-Axial Ring Rolling Machines: These are more versatile machines that can control both the diameter and the height of the ring simultaneously. This allows for the production of rings with more complex profiles and cross-sections.

The choice of machine depends on the specific requirements of the application and the desired shape and dimensions of the final product. It's all about picking the right tool for the job, you know?

What Materials Can Be Used in Ring Rolling Forging?

Now, let's talk about the ingredients! A wide range of metals can be used in ring rolling forging, each offering unique properties and suiting different applications. Think of it like choosing the right flour for a cake – it makes all the difference!

Here are some common materials:

• Steel: From carbon steel to alloy steel, steel is a workhorse material in ring rolling, offering a good balance of strength, cost-effectiveness, and machinability.
• Stainless Steel: For applications requiring corrosion resistance, stainless steel is the go-to choice. Think chemical processing, food industry, and marine environments.
• Aluminum Alloys: Lightweight yet strong, aluminum alloys are popular in aerospace and automotive applications.
• Nickel Alloys: These high-performance alloys offer exceptional strength and corrosion resistance at high temperatures, making them ideal for jet engines and power generation.
• Titanium Alloys: The crème de la crème for strength-to-weight ratio and corrosion resistance, titanium alloys are used in demanding aerospace and medical applications.

The selection of the right material is crucial for ensuring the ring meets the performance requirements of its intended application.

The Benefits of Ring Rolling Forging: A Deeper Dive

We touched on the advantages earlier, but let's really dig into why ring rolling forging is such a big deal. It's not just about making circles; it's about making superior components that can withstand incredible stress and demanding environments.

• Enhanced Mechanical Properties: The forging process refines the grain structure of the metal, leading to improved tensile strength, yield strength, and fatigue resistance. These rings are tough as nails!
• Improved Structural Integrity: The seamless nature of rolled rings eliminates weld seams, which are often weak points in fabricated rings. This significantly enhances the structural integrity and reliability of the component.
• Reduced Machining Costs: The near-net shape capability of ring rolling minimizes the amount of material that needs to be machined away, saving time and money.
• Material Savings: By expanding a smaller piece of metal, ring rolling uses less material compared to machining a ring from a solid block. This is not only cost-effective but also environmentally friendly.
• Versatility in Size and Shape: Ring rolling can produce a wide range of ring sizes, from small bearings to massive rings for wind turbines. It can also create rings with complex profiles and cross-sections.

These benefits make ring rolling forging a go-to process for critical applications where performance and reliability are paramount.

Applications of Ring Rolling Forging: Where Do These Rings End Up?

Okay, so we've got these amazing seamless rings, but where do they actually go? You'd be surprised at the sheer variety of industries that rely on ring rolling forging. These rings are the unsung heroes of countless machines and structures.

• Aerospace: Think jet engine casings, turbine components, and structural elements in aircraft. Lightweight and high-strength rings are crucial here.
• Power Generation: Large diameter rings are used in wind turbines, gas turbines, and steam turbines. These rings need to withstand immense forces and harsh conditions.
• Oil and Gas: Pipeline flanges, valve bodies, and drilling equipment rely on robust and corrosion-resistant rolled rings.
• Automotive: Bearings, gears, and other critical components in vehicles utilize the strength and precision of rolled rings.
• Railroad: Bearing races and wheel components benefit from the durability and reliability of forged rings.
• Construction and Heavy Machinery: Slewing rings for cranes and excavators, as well as components for other heavy equipment, are often produced through ring rolling.

From the skies to the depths of the earth, ring rolled components play a vital role in keeping our world moving.

Ring Rolling Forging vs. Other Ring Manufacturing Methods

So, how does ring rolling forging stack up against the competition? There are other ways to make rings, but each has its own set of advantages and disadvantages. Let's take a quick look:

Method	Advantages	Disadvantages
Ring Rolling Forging	Superior strength, material efficiency, seamless construction, near-net shape.	Higher initial tooling costs, may not be economical for very small production runs.
Machining from Solid Bar Stock	High precision, suitable for complex geometries and small quantities.	Significant material waste, higher cost per part for larger quantities.
Welding and Fabricating	Lower initial cost for simple designs, can create large rings.	Weld seams can be weak points, lower overall strength compared to forging.
Powder Metallurgy	Can create complex shapes and unique material compositions.	Generally lower strength compared to forging, size limitations.

The best method depends on the specific application, required properties, production volume, and budget. However, for applications demanding high strength and seamless construction, ring rolling forging often comes out on top.

The Future of Ring Rolling Forging: Innovations and Advancements

Even in a well-established process like ring rolling forging, innovation never stops. Researchers and engineers are constantly pushing the boundaries to improve efficiency, precision, and the range of materials that can be processed.

Some exciting developments include:

• Advanced Control Systems: Sophisticated sensors and computer controls are enabling even greater precision and automation in the ring rolling process.
• Improved Tooling Designs: New tooling materials and designs are extending tool life and allowing for the production of more complex ring shapes.
• Integration with Simulation Software: Finite element analysis (FEA) and other simulation tools are being used to optimize the rolling process and predict material behavior.
• Near-Net Shape Forming Techniques: Efforts are ongoing to further refine the process to produce rings that require minimal final machining.
• Expanding Material Capabilities: Research is exploring the feasibility of rolling even more challenging materials and alloys.

These advancements promise to make ring rolling forging even more efficient, versatile, and capable of meeting the ever-increasing demands of modern industries.

Addressing Common Misconceptions About Ring Rolling Forging

Like any specialized process, ring rolling forging sometimes suffers from a few misconceptions. Let's clear up a couple of common ones:

Misconception: Ring rolling is only for large rings.

Reality: While ring rolling is excellent for producing large diameter rings, it can also be used to create smaller rings with great precision.

Misconception: Ring rolling is a very rough and inaccurate process.

Reality: Modern ring rolling machines utilize sophisticated controls to achieve tight tolerances and produce near-net shape components, minimizing the need for extensive machining.

Misconception: All rolled rings are the same.

Reality: The properties of a rolled ring depend heavily on the material used, the rolling parameters, and any subsequent heat treatments. Each ring can be tailored to specific performance requirements.

Understanding the nuances of the process helps to appreciate its capabilities and applications.

Ring Rolling Forging: The Heart of Many Industries

At its core, ring rolling forging is a testament to human ingenuity and our ability to shape materials to meet our needs. It's a process that underpins countless industries, providing critical components that enable innovation and progress. From the roaring engines of aircraft to the silent efficiency of wind turbines, the seamless strength of forged rings plays a vital role. So, the next time you see a massive turbine or a sleek jet plane, remember the intricate dance of pressure and rotation that brought its crucial components to life – the marvel of ring rolling forging.

FAQs About Ring Rolling Forging

1. What is the primary advantage of ring rolling forging?The primary advantage is the superior strength and structural integrity of the seamless rings produced, eliminating weak points associated with welds.
2. Is ring rolling forging expensive?While the initial tooling costs can be higher, for medium to large production runs, ring rolling is often more cost-effective than machining from solid stock due to material savings and reduced machining time.
3. What size rings can be made with ring rolling forging?Ring rolling can produce a wide range of ring sizes, from small bearings to very large diameter rings exceeding several meters.
4. Can complex shapes be made with ring rolling forging?Yes, with radial-axial ring rolling machines, it's possible to create rings with complex profiles and cross-sections.
5. What industries use ring rolling forging?Key industries include aerospace, power generation, oil and gas, automotive, and heavy machinery.
6. Is ring rolling forging an environmentally friendly process?Compared to machining, ring rolling is more environmentally friendly due to reduced material waste.

Conclusion: The Enduring Power of Ring Rolling Forging

In conclusion, ring rolling forging stands as a remarkable feat of engineering, transforming raw metal into high-performance, seamless rings that are essential components in a vast array of industries. Its ability to enhance material properties, minimize waste, and create robust structures makes it an indispensable process for demanding applications. As technology advances, so too will the capabilities of ring rolling, ensuring its continued importance in shaping the world around us. So, there you have it – the captivating story of ring rolling forging, a process that truly makes the world go 'round!
