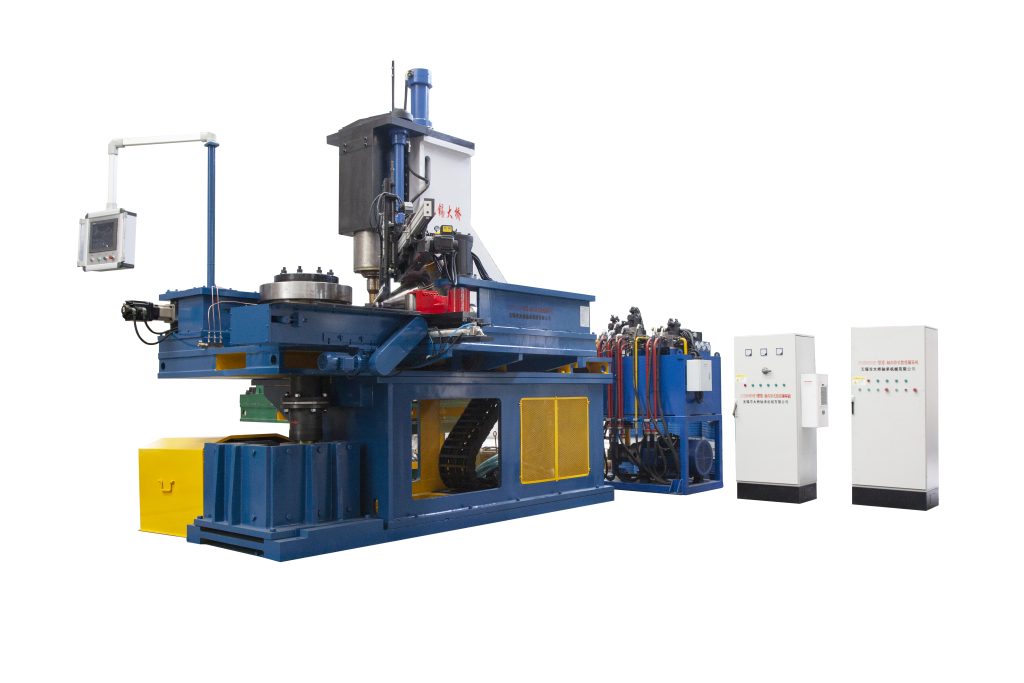

D53SK500E1 Radial-Axial Horizontal CNC Ring Rolling Machine
The Radial-Axial Horizontal CNC Ring Rolling Machine is an advanced industrial forging solution designed for the high-precision production of metal rings. Unlike standard vertical machines, its horizontal design and dual-axis control offer superior stability and performance.
Key Advantages
-
Superior Product Quality: Produces rings with smooth surfaces, high dimensional accuracy, and excellent circularity while eliminating defects like pits, burrs, or tapers.
-
High Versatility: Capable of rolling deep-cylinder rings, flanges, and various shaped ring components.
-
Smart Automation: Features a CNC system that follows pre-set rolling curves and integrates with robotic arms for automatic loading and unloading.
-
Fast Product Changeover: Operators can quickly switch between different ring specifications via a user-friendly HMI (Human-Machine Interface), often without needing to change molds.
-
Remote Monitoring: Supports 4G/5G communication for remote fault diagnosis and software updates.
-
Energy Efficiency: Equipped with frequency-variable motors and oil-electric servo systems to significantly reduce power consumption.
Parameter
| Item | Specification | Unit | Value |
| Ring Dimensions | Outer Diameter (OD) | mm | 220 - 600 |
| Width | mm | 40 - 300 | |
| Performance | Max Productive Capacity | P/h | 45 |
| Radial Rolling Force | KN | 1200 | |
| Axial Rolling Force | KN | 500 | |
| Radial Slider Max Stroke | mm | 300 | |
| Axial Slider Max Stroke | mm | 300 | |
| Radial Main Shaft Rotating Speed | rpm | 34 | |
| Radial Rolling Wheel OD | mm | 840 | |
| Radial Rolling Line Speed | m/s | 1.49 | |
| Taper Roller Rotating Speed | rpm | 85 - 236 | |
| Power | Main Motor (Frequency Conversion) | KW | 160 |
| Oil Pump | KW | 55 | |
| Radial Oil Servo | KW | 1 | |
| Axial Oil Servo | KW | 75 | |
| Other Servo Motors | KW | 9 | |
| Total Power | KW | 232.5 | |
| General | Outside Size (Dimensions) | mm |
5234 x 4052 x 4685
|
| Machine Weight | kg |
38,000 (Excluding purchased parts)
|
